PK系列简介
产品特性：压电平台表面有通光孔位，适用于激光传输，微观观察等应用。本系列产品成为压电扫描台，其中压电平台与显微镜或分析仪结合使用，实现图像处理/稳定。
- 运动方向： X、Z、XY、XZ、XYZ 轴
咨询服务热线：

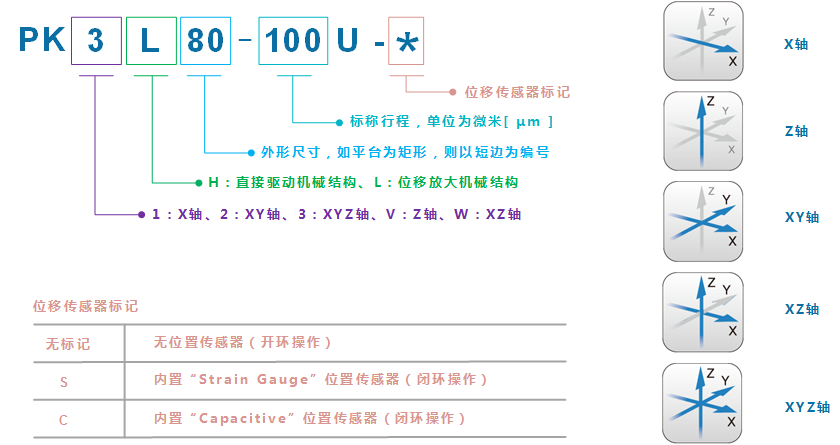

13162165677■ 选型指南
注：点击【规格型号】可链接到详细界面。
运动轴 | 规格型号 | 行程范围 | 最小步长 | 承载力 | 中心孔径 | 外形尺寸 |
 | PK1L90-200U（定制） | 200 μm（±100 μm） | 7.0 nm | 500g | Ø26 mm | 90 × 70 × 27 mm |
| 100 μm | 3.5 nm | 1Kg | 45 x 45 mm | 130 × 130 × 18 mm | ||
| PK1L130-050U-S（定制） | 50 μm | 2.0 nm | 1Kg | 45 x 45 mm | 130 × 130 × 18 mm | |
| PK1L130-050U-S | 100 μm | 3.5 nm | 2Kg | Ø30 mm（标准型） | 130 × 130 × 30 mm | |
| PK1L130-100U-S | 50 μm | 2.0 nm | 2Kg | Ø30 mm（标准型） | 130 × 130 × 30 mm | |
| PK1L100-200U-S | 200 μm | 7.0 nm | 2Kg | Ø35 mm | 100 × 100 × 15 mm | |
| PK1L100-300U-S | 300 μm | 10.0 nm | 2Kg | Ø35 mm | 100 × 100 × 15 mm | |
| PK1L60-160U-S | 160 μm | 6 nm | 500g | Ø25mm | 60×60×24 mm | |
| PK1L60-080U-S | 80 μm | 3.0 nm | 800g | Ø25mm | 60×60×24 mm | |
| PK1L70-160U-S | 160 μm | 6 nm | 500g | Ø35mm | 70×70×24 mm | |
| PK1L70-080U-S | 80 μm | 3.0 nm | 800g | Ø35mm | 70×70×24 mm | |
| PK1L80-080U-S | 160 μm | 6 nm | 700g | 45×45mm | 80×80×24 mm | |
| PK1L80-080U-S | 80 μm | 3.0 nm | 800g | 45×45mm | 80×80×24 mm | |
| PK1H100-030U-S | 30 μm | 1 nm | 5Kg | 50 x 50 mm | 100 ×100 ×20 mm | |
 | PKVL185-200U-S | 200 μm | 7 nm | 3Kg | 100 x100 mm | 185 ×185 ×30mm |
| PKVL185-200U-S | 300 μm | 10 nm | 3Kg | 100 x100 mm | 185 ×185 ×30mm | |
| PKVL150-100U-S | 100 μm | 3.5 nm | 5Kg | 66 × 66 mm | 150×150×30 mm | |
| PKVL150-200U-S | 200 μm | 7 nm | 5Kg | 66 × 66 mm | 150×150×30 mm | |
| PKVL150-300U-S | 300 μm | 10 nm | 5Kg | 66 × 66 mm | 150×150×30 mm | |
| PKVL100-150U-S | 150 μm | 5 nm | 5Kg | Ø50 mm | 108×84×100 mm | |
| PKVL150-080U-S | 80 μm | 3.0 nm | 1Kg | 100 ×100 mm | 100×100×26.5 mm | |
| PKVL60-080U-S | 80 μm | 3.0 nm | 800g | Ø25 mm | 60 × 60 × 24 mm | |
| PKVL60-160U-S | 160 μm | 6 nm | 600g | Ø25 mm | 60 × 60 × 24 mm | |
| PKVL60-240U-S | 240 μm | 8 nm | 400g | Ø25 mm | 60 × 60 × 24 mm | |
| PKVL60-080U-S | 80 μm | 3.0 nm | 800g | RMS螺纹 | 60 × 60 × 24 mm | |
| PKVL60-160U-S | 160 μm | 6 nm | 600g | RMS螺纹 | 60 × 60 × 24 mm | |
| PKVL60-240U-S | 240 μm | 8 nm | 400g | RMS螺纹 | 60 × 60 × 24 mm | |
| PKVL80-400U-S | 400 μm | 14 nm | 500g | 25 × 25 mm | 80 × 80 × 25mm | |
| PKVL80-200U-S | 200 μm | 7nm | 500g | 25 × 25 mm | 80 × 80 × 25mm | |
| PKVL80-080U-S | 80 μm | 3.0 nm | 800g | 45 × 45 mm | 80 × 80 × 24 mm | |
| PKVL80-160U-S | 160 μm | 6 nm | 600g | 45 × 45 mm | 80 × 80 × 24 mm | |
| PKVL80-240U-S | 240 μm | 8 nm | 400g | 45 × 45 mm | 80 × 80 × 24 mm | |
| PKVL70-080U-S | 80 μm | 3.0 nm | 800g | Ø35 mm | 70 × 70 × 24 mm | |
| PKVL70-160U-S | 160 μm | 6 nm | 600g | Ø35 mm | 70 × 70 × 24 mm | |
| PKVL70-240U-S | 240 μm | 8 nm | 400g | Ø35 mm | 70 × 70 × 24 mm | |
| PKVH20-012U | 12 μm | 0.4nm | 500g | Ø10 mm | Ø30 × 28.5mm | |
| PKVH58-020U-S | 20 μm | 0.6 nm | 正立（5Kg） | Ø30 mm | Ø58 × 50mm | |
| PK1L158-016U-S | 16 μm | 0.5 nm | 5Kg | Ø104 mm | Ø158×42.5 mm | |
 | PK2L70-200U-S | 150 μm x 150 μm | 3.0 nm | 2Kg | Φ21mm | 70× 70 × 25 mm |
| PFR150-XY（Z）100U-S | 80x80μm | 3.0 nm | 1Kg | 85×65 mm | 217×150×25mm | |
| PFR150-XY（Z）200U-S | 200x200μm | 7.0 nm | 1Kg | 85×65 mm | 217×150×25mm | |
| PK2L130-100U-S（定制） | 100 μm x 100 μm | 2.0 nm | 1Kg | 45 x 45 mm | 130 × 130 × 18 mm | |
| PK2L130-050U-S（定制） | 50 μm x 50 μm | 3.5 nm | 1Kg | 45 x 45 mm | 130 × 130 × 18 mm | |
| PK2L140-100U-S | 100 μm x 100 μm | 3.5 nm | 2Kg | RMS螺纹 | 140 ×140 ×23.2 mm | |
| PK2L130-050U-S | 50 μm x 50 μm | 2.0 nm | 2Kg | Ø30 mm | 130 × 130 × 30 mm | |
| PK2L130-100U-S | 100 μm x 100 μm | 3.5 nm | 2Kg | Ø30 mm | 130 × 130 × 30 mm | |
| PK2L130-050U-S | 50 μm x 50 μm | 2.0 nm | 2Kg | 定制 | 130 × 130 × 30 mm | |
| PK2L130-100U-S | 100 μm x 100 μm | 3.5 nm | 2Kg | 定制 | 130 × 130 × 30 mm | |
| PK2L100-200U-S | 200 μm x 200 μm | 7.0 nm | 2Kg | Ø35 mm | 100 × 100 × 29.5 mm | |
| PK2L100-300U-S | 300 μm x 300 μm （±150μm） | 10.0 nm | 3.5Kg | Ø35 mm | 100 × 100 × 29.5 mm | |
| PK2L60-080U-S | 80 μm x 80 μm | 3.0 nm | 700g | Ø25 mm | 60 × 60 × 24 mm | |
| PK2L70-080U-S | 80 μm x 80 μm | 3.0 nm | 700g | Ø35 mm | 70 × 70 × 24 mm | |
| PK2L80-200U-S | 200 μm x 200 μm | 7.0 nm | 500g | Ø35 mm | 80 × 80 × 29 mm | |
| PK2L80-080U-S | 80 μm x 80 μm | 3.0 nm | 600g | 45 × 45 mm | 80 × 80 × 24 mm | |
| PK2L60-±040U-S | ±40 μm × ±40 μm | 3.0 nm | 1.5Kg | Ø20 mm | 60 × 60 × 20 mm | |
| PK2L60-040U-S | ±40 μm × ±40 μm | 1.5 nm | 1.5Kg | Ø20 mm | 60 × 60 × 20 mm | |
| PK2H100-030U-S | 30 μm × 30 μm | 1 nm | 2Kg | 50 x 50 mm | 100 ×100 ×20 mm | |
| PK2L150-100U-S（定制） | 100 μm x 100 μm | 3nm | 3Kg | 120 x 60 mm | 146 × 200 × 30 mm | |
| PK2H70-012U-S | 12 μm × 12 μm | 0.4 nm | 1Kg | Ø28 mm | 70 ×70 ×25 mm | |
| PK2L150-100U-S | 100 μm x 100 μm | 3.5nm | 2Kg | 66 mm x 66 mm | 150 ×150 ×30 mm | |
| PK2L150-050U-S | 50 μm x 50 μm | 1.7nm | 2Kg | 66 mm x 66 mm | 150 ×150 ×30 mm | |
| PK2H54-012U | 12 μm x 12 μm | 1.7nm | 500g | 25×27.5 mm | 57.91×52×10 mm | |
 | PKWL60-080U-S | 80 μm x 80 μm | 3.0 nm | 700g | Ø25 mm | 60 × 60 × 24 mm |
| PKWL80-080U-S | 80 μm x 80 μm | 3.0 nm | 600g | 45 × 45 mm | 80 × 80 × 24 mm | |
| PKWL70-080U-S | 80 μm x 80 μm | 3.0 nm | 600g | Ø35 mm | 70 × 70 × 24 mm | |
 | PFR150-XY（Z）100U-S | 80x80x80μm | 3.0 nm | 1Kg | 85×65 mm | 217×150×25mm |
| PFR150-XY（Z）200U-S | 200x200x200μm | 7.0 nm | 1Kg | 85×65 mm | 217×150×25mm | |
| PK3L100-200UA-S | 200μm x 200μm x 80μm | （XY）7.0 nm、（Z）3.0 nm | 500 g | Ø40 mm | 100 × 100 × 34.5 mm | |
| PK3L185-300U-S | 300 μm x 300 μm x 300 μm | 10.0 nm | 500g | 100 x100 mm | 185 ×185 ×30mm | |
| PK3L185-200U-S | 200 μm x 200 μm x 200 μm | 7nm | 500g | 100 x100 mm | 185 ×185 ×30mm | |
| PK3L140-100U-S | 100μm x 100μm x 100μm | 3.5 nm | 1Kg | RMS（可定制） | 140 ×140 ×23.2 mm | |
| PK3L140-100UA-S | 100μm x 100μm x 5μm | （XY）3.5 nm、（Z）0.2 nm | 5kg | 60 x 60 mm | 140 ×140 ×30.2 mm | |
| PK3L140-100UB-S | 100μm x 100μm x 15μm | （XY）3.5 nm、（Z）0.5 nm | 5kg | 60 x 60 mm | 140 ×140 ×30.2 mm |
