PS系列简介

Nanopositioning Stages

承载能力： X、Z、XY、XZ、XYZ 轴

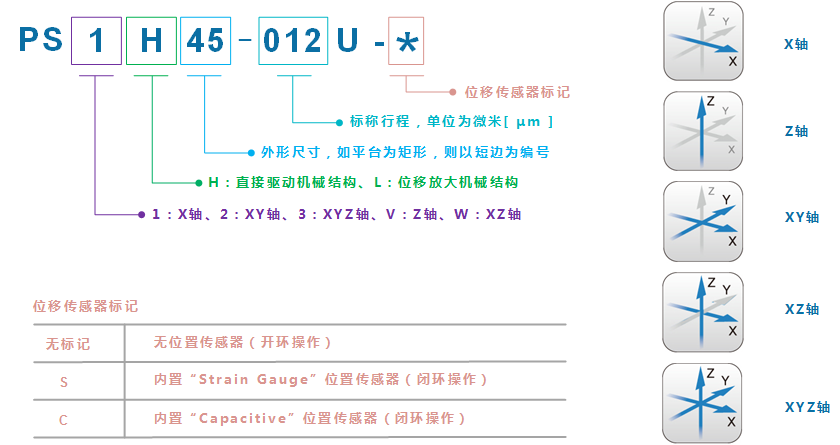

■ 选型指南

图片关键词

注：点击【规格型号】可链接到详细界面。

运动轴	规格型号	行程范围	最小步长	承载力	外形尺寸
	PS1H30-015U-S	15 μm	0.5 nm	2Kg	44 ×30 ×15 mm
	PS1H30-030U-S	30μm	1.0 nm	2Kg	62×30 ×15 mm
	PS1H30-045U-S	45 μm	1.5 nm	2Kg	80 ×30 ×15 mm
	PS1H30-060U-S	60 μm	2.0 nm	2Kg	98 ×30 ×15 mm
	PSVH210-050U-S	50 μm	2.0 nm	5Kg（竖直）	210 × 220 × 51.5 mm
	PS1H45-012U-S	12 μm	0.4 nm	5Kg	45 ×45 ×15 mm
	PS1H45-030U-S	30 μm	1.0 nm	5Kg	45 ×63 ×15 mm
	PS1H45-045U-S	45 μm	1.5 nm	5Kg	45 ×81 ×15 mm
	PS1H45-060U-S	60 μm	2.0 nm	5Kg	45 ×99 ×15 mm
	PS1L73-100U-S	100 μm	3.5 nm	3Kg	73 × 73 × 17.5 mm
	PS1L40-200U-S	200 μm	7.0 nm	3Kg	73 × 73 × 17.5 mm
	PS1L110-080U-S	80 μm	3.5 nm	15Kg	110× 110 × 28 mm
	PS1L30-050U-S	50 μm	2.0 nm	15Kg	30x30x12
	PS1L40-100U-S	100 μm	3.5 nm	1Kg	40x40x15
	PS1L50-200U-S	200 μm	7.0 nm	1Kg	50x50x15
	PS1L60-500U-S	500 μm	17 nm	1Kg	60x60x15
	PS1L80-800U-S	800 μm	28 nm	1Kg	80x80x17
	PS1L100-1500-S	1500 μm	50 nm	1Kg	100x100x22.5
	PS1L100-200U-S	200 μm	7.0 nm	3.5Kg	100 × 100 × 17.5 mm
	PS1L100-300U-S	300 μm（±150μm）	10 nm	3.5Kg	100 × 100 × 17.5 mm
	PS1L40-080U-S	80 μm	3.0 nm	800g	40 × 40 × 22 mm
	PS1L27-030U-S	30 μm	1.0 nm	40 g	27 × 27 × 20 mm
	PS1L54-200U-S	200 μm	7.0 nm	500 g	54 × 54 × 25 mm
	PS1H30-005U-S	5 μm	0.2 nm	800 g	30 × 30 × 21 mm
	PS1H60-024U-S	24 μm	0.8 nm	800 g	60 × 60 × 16 mm
	PS1L100-400U-S	400 μm	15 nm	500 g	100 ×100 ×19.5 mm
	PS1L17-030U-S	30 μm	1.0 nm	700 g	17 × 17.5 × 27 mm
	PS1L17-080U-S	80 μm	3.0 nm	700 g	17 × 17.5 × 36mm
	PSVL50-300U-S	300 μm	6.0 nm	500 g	50 × 50 × 17.5 mm
	PS1L17-030U-S	30 μm	1.0 nm	700 g	17 × 17.5 × 27 mm
	PS1L17-080U-S	80 μm	3.0 nm	700 g	17 × 17.5 × 36mm
	PSVL40-080U-S	80 μm	3.0 nm	800 g	40 × 40 × 22 mm
	PSVL40-160U-S	160 μm	6.0 nm	400 g	40 × 40 × 36.5 mm
	PSVL40-240U-S	240 μm	8.0 nm	400 g	40 × 40 × 36.5 mm
	PSVL27-030U-S	30 μm	1.0 nm	800 g	27 × 27 × 20 mm
	PSVH30-005U-S	5 μm	0.3 nm	800 g	30 × 30 × 24 mm
	PSVL54-200U-S	200 μm	7.0 nm	500 g	54 × 54 × 25 mm
	PSVL90-500U-S	500 μm	17nm	500 g	90 × 90× 30 mm
	PS2L45-030U-S	30 μm x 30 μm	1.0 nm	500 g	45 × 45× 23.5 mm
	PS2L70-200U-S	200 μm x 200 μm	7.0 nm	500 g	70 × 70 × 28 mm
	PS2L40-080U-S升级	80 μm x 80 μm	3.0 nm	7500 g	40 ×40 × 36.5 mm
	PS2L30-050U-S	50 μm	2.0 nm	1Kg	30x30x21.5
	PS2L40-100U-S	100 μm	3.5 nm	1Kg	40x40x25
	PS2L50-200U-S	200 μm	7.0 nm	1Kg	50x50x25
	PS2L60-500U-S	500 μm	17 nm	1Kg	60x60x25
	PS2L80-800U-S	800 μm	28 nm	1Kg	80x80x25
	PS2L100-1500-S	1500 μm	50 nm	1Kg	100x100x40
	PS2H30-005U-S	5 μm x 5 μm	0.2 nm	500 g	30 × 30 × 30 mm
	PS2L40-080U-S	80 μm x 80 μm	3.0 nm	700 g	40 ×40 × 36.5 mm
	PS2H45-012U-S	12 μm x 12 μm	0.4 nm	300 g	45 × 45 × 30.5 mm
	PS2L150-300U-S	300 x 300 μm（±150 x ±150 μm ）	10 nm	5 Kg	150 ×150 × 36.6 mm
	PS2H60-024U-S	24 μm x 24 μm	0.8 nm	5 Kg	60 ×60 × 32 mm
	PS2L14-080U-S	80 μm x 80 μm	3 nm	500 g	44 × 44 × 15 mm
	PS2L17-200U-S	200 μm x 200 μm	7 nm	500 g	70 × 70 × 18 mm
	PS2L14-150U-S	150 μm x 150 μm	5 nm	500 g	54 × 54 × 14.5 mm
	PSWL130-300UA-S	300 μm x 200 μm	(X)10.0 nm、(ZX)7.0 nm	3 Kg	130 × 130 × 25.5 mm
	PSWL120-240UA-S	230 μm x 180 μm	(X)8.0 nm、(Z)6.0 nm	2 Kg	120 × 120 × 40.5 mm
	PSWH30-005U-S	5 μm x 5 μm	0.2 nm	500 g	30 × 30 × 30 mm
	PSWL40-080U-S	80 μm x 80 μm	3.0 nm	700 g	40 ×40 × 36.5 mm
	PS3L45-030U-S	30 μm x 30 μm x 30 μm	1.0 nm	500 g	45 × 45× 23.5 mm
	PS3L90-100UA-S	100 μm x 100 μm x 500 μm	（XY）3.5 nm、（Z）17 nm	500 g	90 × 90 × 30 mm
	PS3L40-080U-S	80 μm x 80 μm x 80 μm	3.0 nm	700 g	40 ×40 × 36.5 mm
	PS3L100-300UA-S	300 μm x 300 μm x 80 μm	（XY）10 nm、（Z）3 nm	500 g	100 × 100 × 34.5 mm
	PS3L70-200U-S	200 μm x 200 μm x 200 μm	7 nm	500 g	70 × 70 × 28 mm
	PS3H30-005U-S	5 μm x 5 μm x 5 μm	0.2 nm	500 g	30 × 30 × 42 mm
